TOLUCA TRAIN STATION
The Mexico-Toluca train will connect the Toluca metropolitan area with Mexico City and will serve more than 300,000 passengers each day, although demand growth is expected to reach 500,000 daily users in 2047.
The new network has six above ground stations: Zinacantepec, Terminal de Autobuses, Metepec, Lerma,Santa Fe y Observatorio. It will have a route in which tunnels and viaducts account for 92 percent of the route. Throughout its 57.8 kilometers, there are 49 kilometers of viaducts in total, and a 4.7-kilometer bitube tunnel has been projected, connected with transversal galleries every 240 meters. The train will have a design speed of up to 160 kilometers per hour and a route time of 39 minutes, which represents a commercial speed of 90 kilometers per hour.
Architecture, Construction & Design Awards 2020
Third Award | Transportation (Built)
Project Details | |
Project Name: | TOLUCA TRAIN / TRAIN STATION |
Studio Name: | SENER Ingenieria y sistemas -TEN ARCHITECTS |
Design Team: | |
ARCHITECTURAL DESIGN: SENER & TEN ARCHITECTS | ENRIQUE NORTEN (TEN ARCHITECTS) |
JORGE TEJEDA (SENER) | |
PELAYO SUAREZ (SENER) | |
ARCHITECTURAL DESIGN TEAM | |
TEN ARCHITECTS: | FERNANDO ALANIS |
MELISSA FUKUMOTO | |
DANIEL VALDEZ | |
SENER Ingenieria y Sistemas: | SARAHI BAUTISTA |
CYNTHIA CHENA | |
SOFIA MORELOS | |
CLAUDIA ESCANDÓN | |
YOLANDA YÁÑEZ | |
FELIPE PEÑA | |
SAÚL RODRIGUEZ | |
JESUS PONCE | |
GERARDO CERVANTES | |
YESICA ORTEGA | |
DANIEL RODRIGUEZ | |
XAVIER GARCIA | |
STRUCTURAL DESIGN | CARLOS LLOPIS |
MEP & TELECOM | GUSTAVO ANGELES |
LUIS JUAREZ | |
JOSE GRIFALDO | |
HASSAN ALMAIMOUNI | |
Area: | 10,435 M2 (Each Station) – 62,600 M2 (6 Above ground stations) |
Year: | 2014-2020 |
Location: | Toluca and Ciudad de Mexico, MEXICO |
Photography Credits: | Lorena Darquea |
![TOLUCA TRAIN TRAIN STATION | SENER Ingenieria y sistemas - Sheet2](https://indiaarchitectureawards.com/wp-content/uploads/2023/09/TOLUCA-TRAIN-TRAIN-STATION-By-SENER-Ingenieria-y-sistemas-2-1024x724.jpg)
©Lorena Darquea
HIGHLIGHT IN THE DESIGN OF THE STATIONS

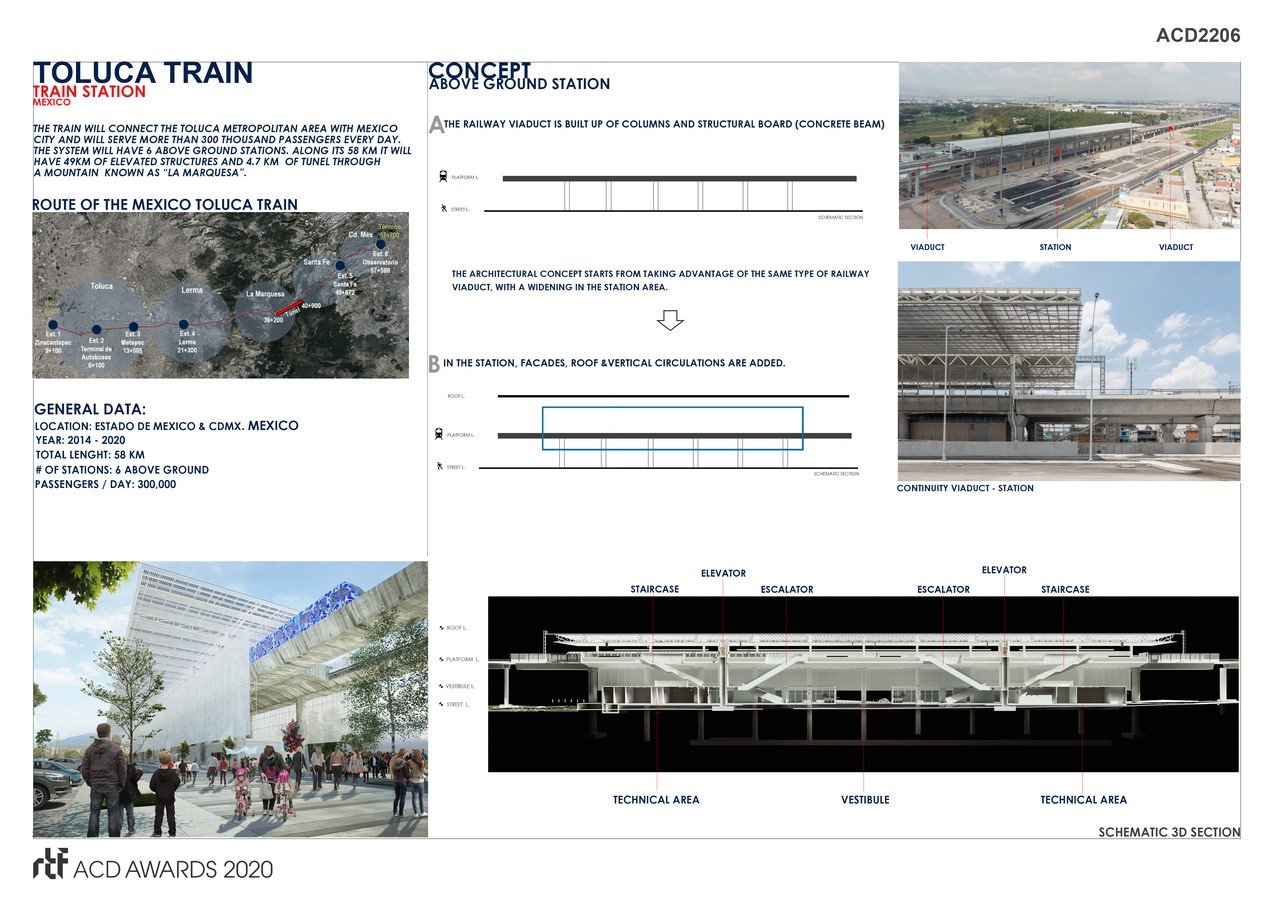

The stations were designedwith the same structural system of the viaduct, as a continuation of it (columns and supported viaduct) Only the structural board is widened to receive the platforms, facades and finishes.
![TOLUCA TRAIN TRAIN STATION | SENER Ingenieria y sistemas - Sheet3](https://indiaarchitectureawards.com/wp-content/uploads/2023/09/TOLUCA-TRAIN-TRAIN-STATION-By-SENER-Ingenieria-y-sistemas-3-1024x724.jpg)
©Lorena Darquea

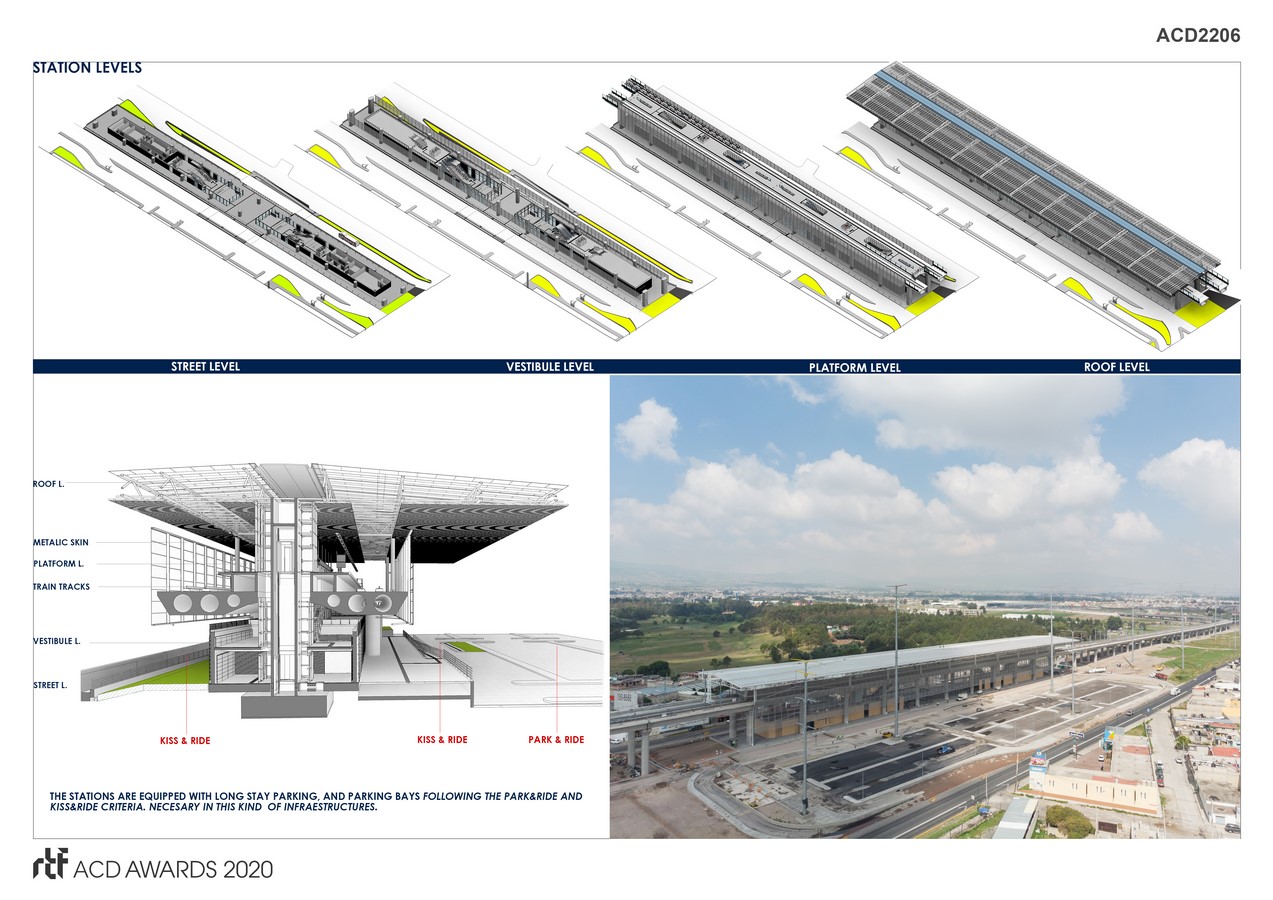

Urbanistically the stations have a long and short stay parking adjacent to it, allowing users to leave their car and board the train. In addition, each of the stations are equipped with bus stops, with the Kiss and ride typology, to avoid accumulations of public service in the stations.

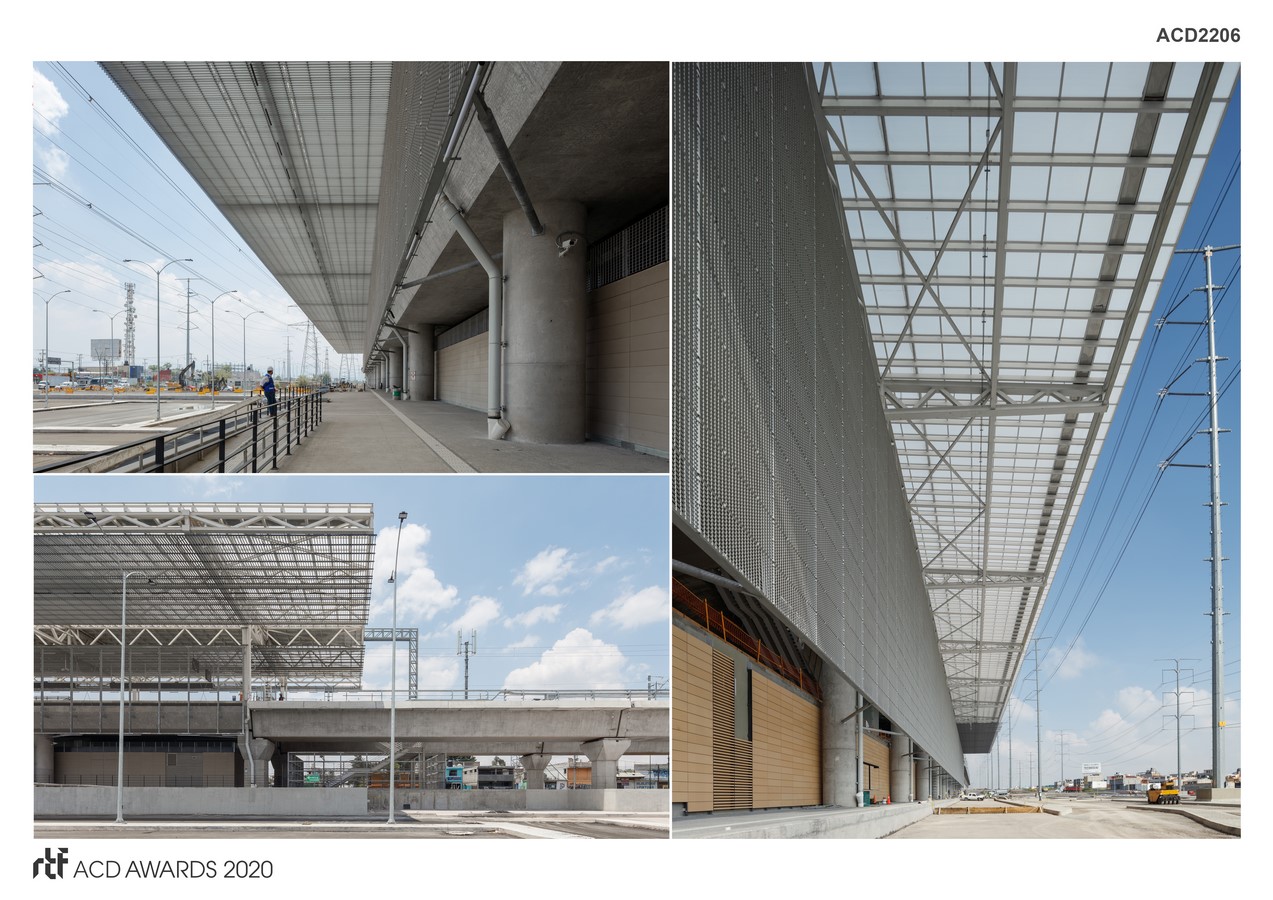

The materials (finishes) used are industrial, apparent concrete and galvanized metal elements.
![TOLUCA TRAIN TRAIN STATION | SENER Ingenieria y sistemas - Sheet4](https://indiaarchitectureawards.com/wp-content/uploads/2023/09/TOLUCA-TRAIN-TRAIN-STATION-By-SENER-Ingenieria-y-sistemas-4-1024x724.jpg)
©Lorena Darquea

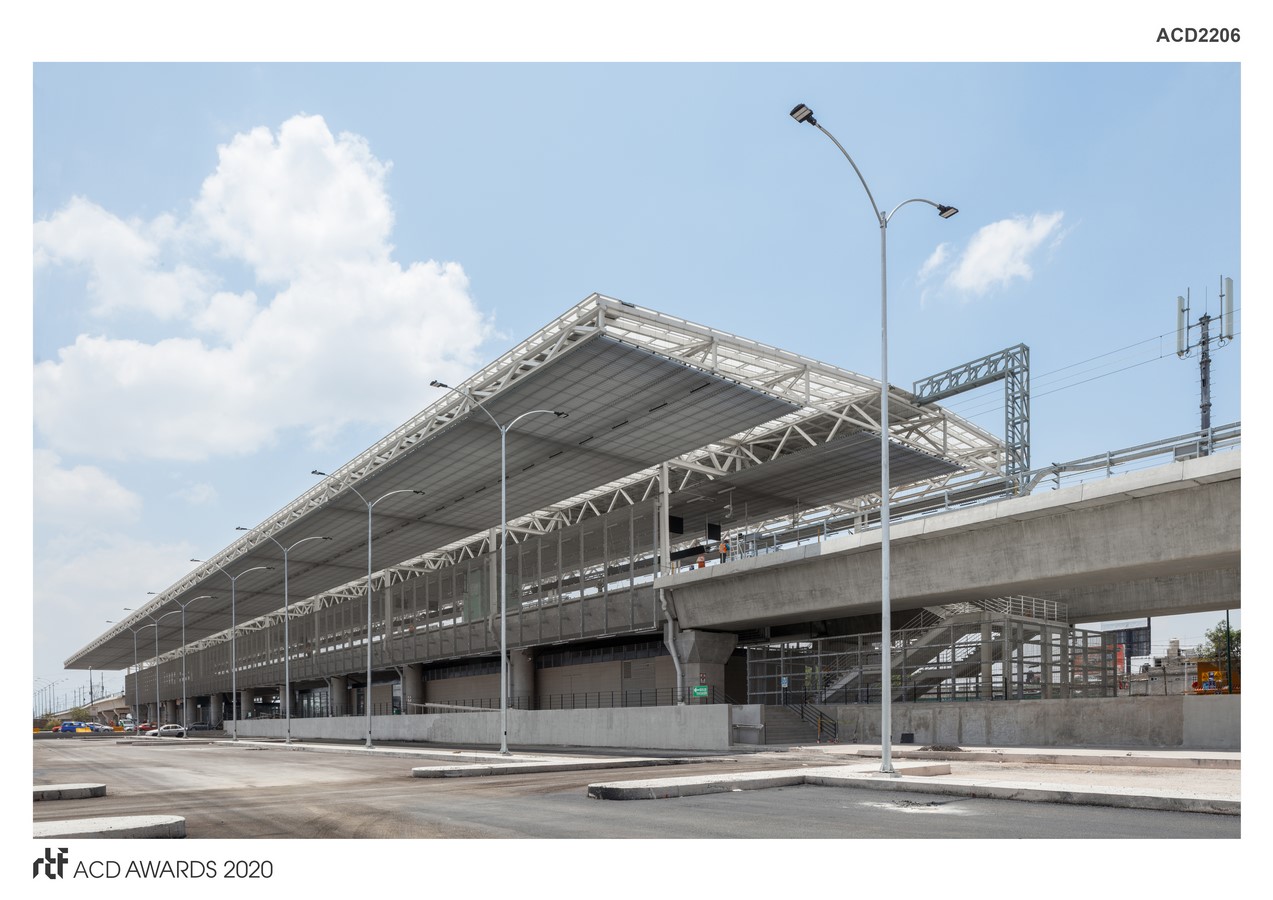

The station finishes were designed thinking of having a language similar to the high voltage towers located in Avenida las Torres. Also the color palet of these elements was taken as a criterion so that the materials were not so different in the seasons. (gray and metal).
